Do it yourself: replace saxophone palm key pads

ByBret Pimentel

If you’re interested in learning to do some pad replacements on your instrument(s), saxophone left-hand palm keys are a good place to start. Here’s why:

  • The palm keys don’t have any dependencies—they don’t move any other keys and aren’t moved by any other keys. So replacing a palm key pad won’t set off a chain reaction of adjustments you have to make to the instrument’s mechanism.
  • The palm keys are sprung to sit closed when you’re not pressing them, which means that the spring will help you get the pad seated, instead of getting in your way. It will also press the pad firmly against the tonehole, overcoming small imperfections in your padding technique. With keys that sit open on their own, the padding has to be extra skilled so you can use a feather-light touch when you play.
  • The palm keys are long, so you’re less likely to burn your fingers.
  • When you’re playing, the palm key pads take the brunt of the condensation from your breath, so they need relatively frequent replacement anyway. I bet yours could stand replacing.

I’ll walk you through this. I perhaps should confess that I am not NAPBIRT certified or anything fancy like that. You undertake this at your own risk, etc.

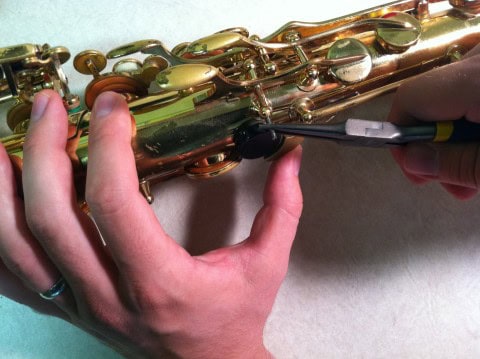

First, remove the key by unscrewing the pivot rod and pulling it out.

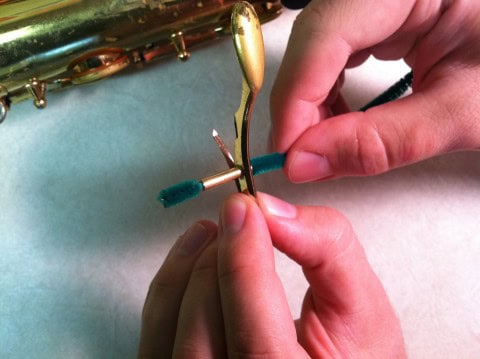

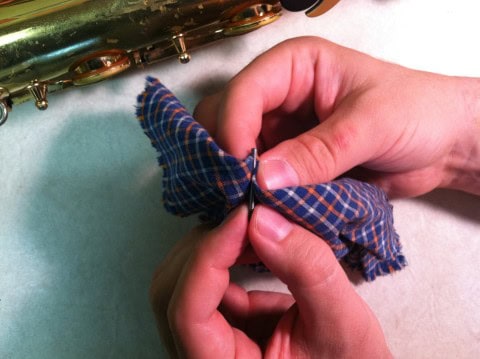

If you’ve got a good key lubricant handy, then you might as well clean the pivot rod and tube and relubricate. I use an automotive gear oil (not motor oil), but there are plenty of commercial key oils available for purchase if you prefer. As a matter of policy, all instrument repairers disagree with each other on what you should use, so exercise your best judgment.

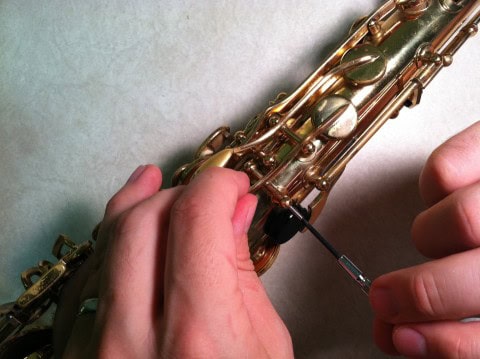

I like to clean any gunk off the tonehole, as well:

Next, heat the pad cup to liquefy the glue or shellac. I use an inexpensive butane torch that I got from a hardware store.

Too much heat can scorch the lacquer, so go slowly and be patient. Often, when the glue starts to liquefy, the pad will start to lift out of the pad cup on its own. If not, you can poke the pad with something (not a finger—it’s hot) and see if it’s loose yet.

The adhesive under this pad is clear, so it’s most likely the kind of glue that is used in hot glue guns. You can get it from a craft store. A brownish shellac is more traditional, but seems to be losing popularity. You can get it from places that sell instrument repair supplies.

This pad has the size indicated right on it, so I know which size to replace it with.

But pads are easy enough to measure, especially if you have a cheap caliper. Match the thickness of the original pad, too.

MusicMedic.com is a good place to buy pads (and other supplies) for do-it-yourself repairs, since they will let you buy pads individually, instead of hundreds at a time. If you’re not in a hurry, you can take out the pads that need replacing, measure them, and then place an order for exactly what you need. The pads already on this horn are tan leather with a brown plastic resonator, so that’s what I’m replacing them with, but there are lots of other options.

If you’ve already got pads and the adhesive is still warm enough to be in a liquid state, you can put the new pad right in. Otherwise you’ll need to reheat the pad cup first. If you need to add adhesive, you can heat the pad cup and sort of paint some in there with the stick of glue or shellac. Or put some shavings from the stick into the pad cup and then heat it.

Plop the new pad into place.

If you act quickly, you can put the key back on the instrument while the glue is still liquid, and the pad will hopefully settle right in. If you’re slow or if the pad doesn’t seem to be contacting the tonehole completely, add a little gentle heat to re-soften the glue, then press and release the key a few times. The pressure from the spring will help guide the pad into place.

If the pad still seems to be leaking, you may have a pad that isn’t flat. Or you may have a tonehole that isn’t level, or a key that is a little bent (either of these can be quickly and easily fixed by your favorite professional saxophone technician). But if the old pad was seating well, chances are that a good new one will, too.

Let the glue cool thoroughly, and you’re all done! Nice job.

Similar Posts

  • How many instruments do you play?

    ByBret Pimentel

    “So, how many instruments do you play?” I get this a lot.

    The way I prefer to answer is this: I play all of the major modern woodwind instruments, plus some folk and ethnic woodwinds.

    That answer usually doesn’t cut it. Read More “How many instruments do you play?”

  • Which instrument should I learn next?

    ByBret Pimentel
    Photo, Jon Delorey

    One of the questions I get most frequently from aspiring woodwind doublers is “Which instrument should I learn next?”

    The short answer is “Whichever you want.” Woodwind doublers’ motivations (career, artistic, or personal) are varied, and your interests and goals should override any advice I (or anyone) can offer. If you really want to learn to play a certain instrument, then no need to read further—that’s the one you should tackle next. And if you don’t feel motivated about a certain instrument, then your chances of success aren’t good.

    But many of the doublers I hear from have designs on picking up several instruments over the long term, and are just looking for advice to maximize some aspect of their current careers:

    Employability

    If your goal is to get as many doubling gigs as possible, then there are some relatively common combinations of instruments that are used for musical theater, jazz big bands, and other commercial-type live-performance situations. (If you play another combination, then there are probably still opportunities out there if you find them or make them yourself.) Some of the common ones are:

    • Flute, clarinet, and saxophone. For jazz situations, you need good saxophone chops coupled with a good grasp of jazz style and possibly improvisation. If doubling is required, it will almost always be C flute, B-flat clarinet, or both, and often the bar isn’t terribly high on these. For theater, you will find that the weighting depends on the show and the book; often the Reed 1 and Reed 2 books both call for flute, clarinet, and saxophone, but Reed 1 might have the lead flute parts and solos, and Reed 2 is the lead/solo clarinet part. If it’s a jazz-heavy musical, then either part might call for orchestral-type soloing on flute or clarinet, plus demand convincing lead alto saxophone playing. Theater books are also likely to call for doubling on “secondary” instruments like piccolo, E-flat clarinet, and soprano saxophone.
    • Low reeds. In a jazz big band, this means primarily baritone saxophone with some bass clarinet (and occasionally B-flat clarinet and/or flute). For theater, a more “classical” show will likely be bassoon-heavy, with bass clarinet and baritone saxophone doubles; a jazzy show will lean toward baritone saxophone and bass clarinet with less (or no) bassoon. Bass saxophone and contrabass clarinets occasionally appear as well; most smart arrangers will provide ossia lines to enable covering these on more standard instruments.
    • Oboe specialist. This surprising combination shows up in many musicals: oboe, sometimes with English horn, plus B-flat clarinet and tenor saxophone. Generally the oboe and English horn parts call for a soloist-level player, with little more than inner harmonies on the single reed instruments.

  • Reasons to choose an instrument

    ByBret Pimentel

    School is starting soon, and some kids will be picking out the instrument that they will play in the school band. If you know someone in this situation and they are interested in a woodwind instrument—flute, oboe, clarinet, bassoon, or saxophone—here are some factors that might come under consideration.

    photo, Herald Post
    photo, Herald Post

    Bad reasons to choose an instrument

    • Gender. Some outdated attitudes and pedagogical materials suggest, for example, that the flute is particularly suited to girls.
    • Facial anatomy. Some outdated or ill-informed ideas exist, for example, that certain sizes or shapes of lips are better suited to certain instruments. For woodwinds, this is not an actual issue, except perhaps in cases of significantly unusual morphology.
    • Physical size or hand/finger size. This is not a significant issue for middle school or larger kids with any of the typical beginning band woodwinds, unless they are very significantly smaller than average, or perhaps significantly larger than an average adult.
    • Blowing “strength” or “lung capacity.” Anyone with normal respiratory function has the “strength” and “capacity” to play any of the woodwinds.
    • Success in “aptitude” testing. Some educators like to give some kind of test or trial to see which instruments individual students will be good at. These tests are, at best, mildly entertaining experiments in beginners’ luck.
    • Previous experience. For someone who is switching to a new instrument (or adding one), there is generally no reason to be concerned about any specific combination of instruments, and perceived similarities are not necessarily an advantage.

    A sad-but-true reason to choose an instrument

    • Expense. Unfortunately, woodwind instruments can be expensive to purchase, equip, and maintain, and some of them more so than others. It’s wise to be aware of the costs up front. (Generally speaking, beginner-model woodwinds go from least to most expensive in this order, assuming equivalent quality: flute or clarinet, saxophone, oboe, bassoon.)

    The best reason to choose an instrument

    • Motivation. A beginner’s interest in playing a certain instrument is the best predictor of enjoyment and success, and, whenever possible, should be the primary deciding factor.

    Good luck!

  • Jazz opportunities for woodwind players: learn the saxophone

    ByBret Pimentel
    Jazz clarinetist (and saxophonist!) Eddie Daniels. Photo, Professor Bop

    I’ve been having a great time directing the university jazz band this year (alas, a temporary assignment). The group performed recently for some talented high school musicians from around the state, the kind of students I would like to recruit. After the performance, I was approached by no less than three of them, each expressing an interest in playing in the group in the future. None of them play instruments typical of jazz big band arrangements.

    I’ve had this happen with private students, too. I once met with a very young and enthusiastic clarinetist and her mother. They explained to me that the young clarinetist was being excluded from her middle school jazz band because she didn’t play a “jazz” instrument. Their plan was for her to study clarinet with me, and to get so good that the jazz band director would “just have to” accept her into the group.

    The clarinet, of course, does have a noble history in jazz music (even big bands), as does the flute, and, less frequently, the double reeds. And don’t get me wrong here—I love playing and listening to jazz on all those instruments, and would love to see every young woodwind player, regardless of instrument, get the chance to participate. But there are some practical barriers. Read More “Jazz opportunities for woodwind players: learn the saxophone”

  • Flexible EWI fingerings

    ByBret Pimentel

    With traditional woodwind instruments, the fingers work together to change the effective length of the instrument’s body tube by opening and closing toneholes. Woodwind fingerings at their most basic use the fingers in sequence. For example, a certain note might be produced with an “open” fingering (all toneholes open). When the “first” finger (the one closest to the mouthpiece) closes a hole, the pitch drops, perhaps by a whole step. Adding the next farther finger drops the pitch again, and so on toward the bell end of the instrument.

    “Forked” fingerings, in which a lower tonehole is closed while one above it is open, often produce somewhat inferior results—notes that are mismatched in timbre and/or intonation. (Some modern woodwinds use special mechanisms to correct for this, such as the F resonance mechanism on a high-quality oboe.)

    An electronic woodwind-style instrument, such as the Akai EWI series, uses a fingering system that is designed to be similar to a traditional woodwind, so that a traditional woodwind player can easily adapt to it. But this is an arbitrary choice. Since the instrument’s tone production system uses electronic circuitry and software, rather than a vibrating air column, the fingering system don’t necessarily have to use the fingers in sequence, and forked fingerings don’t have any inherent problems. The fingerings can be invented completely from scratch, with no acoustical limitations.

    EWI fingerings are designed to draw upon the best of both worlds—the familiarity of traditional woodwind fingerings, and the flexibility of a non-acoustical fingering system.

    Note that the current-model EWI4000s, using version 2.4 of the operating system, includes several fingering modes. The mode I am considering here is the “EWI” mode, as the “flute,” “oboe,” and “saxophone” modes sacrifice some flexibility for the sake of increased familiarity to traditional woodwind players. You might consider this article to be subtitled, “Why you should be using the ‘EWI’ fingering mode.”

    The current manual (“revision D”) shows a mere 17 fingerings in its EWI mode fingering chart (11 chromatic pitches, with B-flat through D having fingerings in two octaves, and B-flat having one additional alternate fingering). But many, many more are possible.

    We can consider the individual EWI keys as having individual functions, rather than being inherently interdependent. For example, pressing none of the keys produces a C-sharp:

    C-sharp

    Adding any key will alter the C-sharp pitch by a given amount:

    key pitch change
    (in semitones)    		 exceptions
    LH 1 -2
    LH bis -1 If both LH 1 and LH 2 are pressed, LH bis has no effect
    LH 2 -2 If LH 1 is not pressed, LH2 produces -1 (this makes LH middle finger C possible)
    LH 3 -2
    LH pinky 1 +1
    LH pinky 2 -1
    RH side +1 No effect when used in combination with LH pinky 1
    RH 1 -2 If LH 3 is not pressed, RH1 produces -1 (this makes 1 + 1 B-flat possible)
    RH 2 -1
    RH 3 -2
    RH pinky 1 +1
    RH pinky 2 -1
    RH pinky 3 -2

    If I press LH 1, LH 2, and LH 3, the pitch is lowered from C-sharp by a total of 6 semitones, producing the G fingering familiar to saxophonists, oboists, flutists, and clarinetists.

    But that is only one possible combination. I could also produce a G with, for example, LH 1, LH 2, and RH 3. Or LH 3, LH pinky 2, RH 1, and RH pinky 2. These fingerings would be extremely unlikely to work on a traditional woodwind, but with the EWI the possibilities are wide open. As long as the total pitch change adds up to -6 (and accounting for any of the listed exceptions), you get a G.

    Standard G fingering.(LH 1 + LH 2 + LH 3) = (-2 + -2 + -2) = -6 = G One alternative G fingering.(LH 1 + LH 2 + RH 3) = (-2 + -2 + -2) = -6 = G Another alternative G.(LH 3 + LH pinky 2 + RH 1 + RH pinky 2) = (-2 + -1 + -2 + -1) = -6 = G

    These examples are illustrative but likely have few real-world applications. For a more practical example, consider trills, which among traditional woodwind players are a subject of endless discussion and books upon books of awkward, complicated fingerings. An ideal trill fingering involves moving only one finger, preferably one that can be moved in a rapid, controlled, non-awkward way. Continue reading for a musical example and sound clip →

  • Dubious pedagogy alert: woodwind vibrato

    ByBret Pimentel

    I think there is a lot of garbage in the way woodwind vibrato—specifically flute and double reed vibrato—is taught.

    Flutists, oboists, and bassoonists use the same basic physiological mechanism to produce vibrato. I often read or hear debates over what, exactly, this mechanism is, with some arguing fervently that it is the “diaphragm,” and others insisting that it is the “throat.”

    It’s worth pointing out here that a major issue in wind-instrument pedagogy is the fact that so many of the important techniques happen somewhere inside the body where they cannot be easily observed. (Violinists don’t seem to have much disagreement about what part of the body to use for vibrato.)

    My belief is that neither the “diaphragm” nor the “throat” can be correctly identified as the organ of vibrato. Read More “Dubious pedagogy alert: woodwind vibrato”

5 Comments

  1. A few additional comments that I’ve learned as an instrument manufacturer, if you don’t mind, Bret:

    – If you stick a pin in the side of the pad and lift while heading the pad cup with a torch, you are likely to lift a higher percentage of the shellac (or glue) out of the pad cup when removing the pad.

    – You can further clean the pad cup once the pad is removed by heating it again and wiping the excess shellac from the inside with a shop rag.

    – Acetone is your best friend when it comes to cleaning the dirty oil off of arbors and shellac from pad cups. You can store a pint or so in a Nalgene bottle, since the acetone will likely slowly dissolve the inside of other types of plastic containers.
